8″ Trench Shield – Heavy Duty Rental
Keep employees safe while working in trenches using the 8″ Trench Shield – Heavy Duty from Sage Rental Services. The trench shield will protect your workers if the trench walls collapse. The extra width provides more durability for keeping everyone on the job safe. Rent an 8″ Steel Trench Shield from Sage Rental Services to use at your job site.
Heavy Series, for Most Demanding Capacities

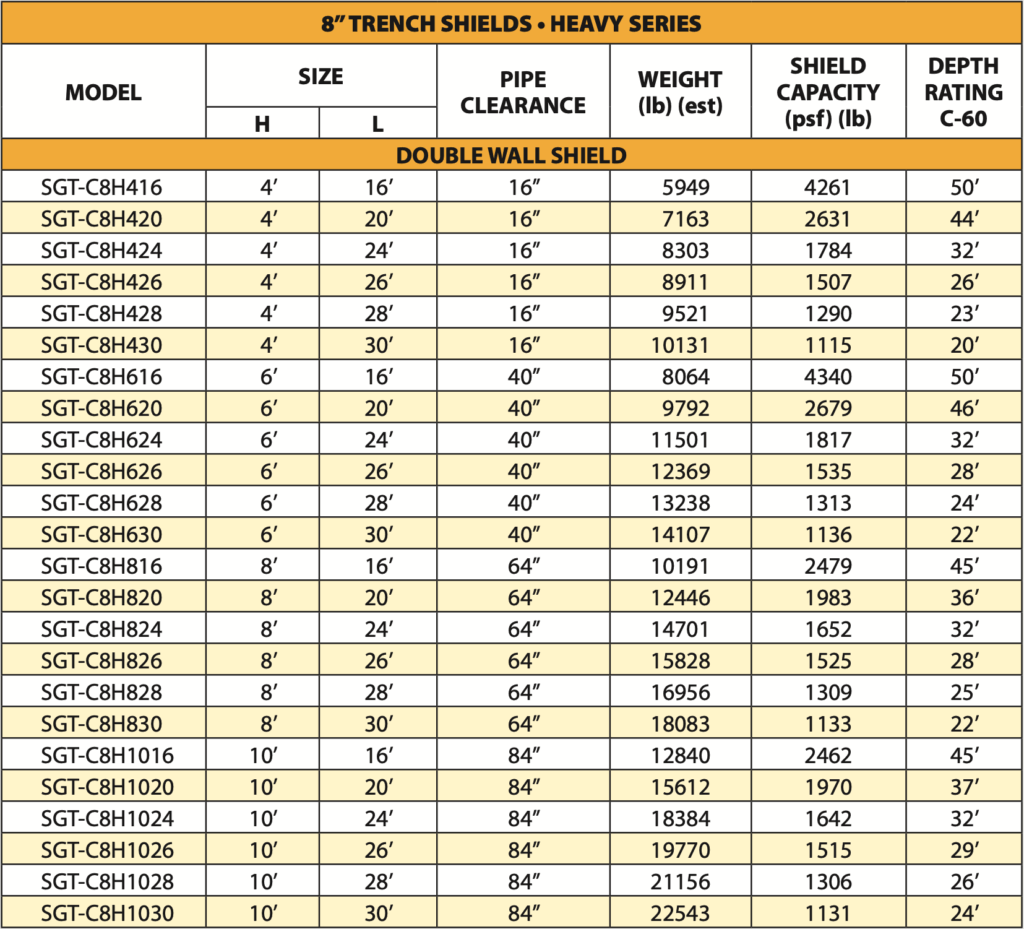

| 8″ Trench Shields – Heavy Series | ||||||
|---|---|---|---|---|---|---|
| Model | Size (H) | Size (L) | Pipe Clearance | Weight (lb) (est) | Shield Capacity (psf) (lb) | Depth Rating C-60 |
| Double Wall Shield | ||||||
| SGT-C8H416 | 4′ | 16′ | 16″ | 5949 | 4261 | 50′ |
| SGT-C8H420 | 4′ | 20′ | 16″ | 7163 | 2631 | 44′ |
| SGT-C8H424 | 4′ | 24′ | 16″ | 8303 | 1784 | 32′ |
| SGT-C8H426 | 4′ | 26′ | 16″ | 8911 | 1507 | 26′ |
| SGT-C8H428 | 4′ | 28′ | 16″ | 9521 | 1290 | 23′ |
| SGT-C8H430 | 4′ | 30′ | 16″ | 10131 | 1115 | 20′ |
| SGT-C8H616 | 6′ | 16′ | 40″ | 8064 | 4340 | 50′ |
| SGT-C8H620 | 6′ | 20′ | 40″ | 9792 | 2679 | 46′ |
| SGT-C8H624 | 6′ | 24′ | 40″ | 11501 | 1817 | 32′ |
| SGT-C8H626 | 6′ | 26′ | 40″ | 12369 | 1535 | 28′ |
| SGT-C8H628 | 6′ | 28′ | 40″ | 13238 | 1313 | 24′ |
| SGT-C8H630 | 6′ | 30′ | 40″ | 14107 | 1136 | 22′ |
| SGT-C8H816 | 8′ | 16′ | 64″ | 10191 | 2479 | 45′ |
| SGT-C8H820 | 8′ | 20′ | 64″ | 12446 | 1983 | 36′ |
| SGT-C8H824 | 8′ | 24′ | 64″ | 14701 | 1652 | 32′ |
| SGT-C8H826 | 8′ | 26′ | 64″ | 15828 | 1525 | 28′ |
| SGT-C8H828 | 8′ | 28′ | 64″ | 16956 | 1309 | 25′ |
| SGT-C8H830 | 8′ | 30′ | 64″ | 18083 | 1133 | 22′ |
| SGT-C8H1016 | 10′ | 16′ | 84″ | 12840 | 2462 | 45′ |
| SGT-C8H1020 | 10′ | 20′ | 84″ | 15612 | 1970 | 37′ |
| SGT-C8H1024 | 10′ | 24′ | 84″ | 18384 | 1642 | 32′ |
| SGT-C8H1026 | 10′ | 26′ | 84″ | 19770 | 1515 | 29′ |
| SGT-C8H1028 | 10′ | 28′ | 84″ | 21156 | 1306 | 26′ |
| SGT-C8H1030 | 10′ | 30′ | 84″ | 22543 | 1131 | 24′ |
What Is a Trench Shield?
A trench shield is a structure made from steel or aluminum that protects workers in trenches. The shield has walls that follow the sides of the trench. If the trench’s walls were to collapse or cave in, the shield would prevent the dirt from burying anyone in the trench.
In compliance with the Occupational Safety and Health Administration, all jobs involving trenching and excavation must use trench shields to protect workers.
Benefits of a Heavy-Duty 8″ Trench Shield
Working in trenches increases the risk of injury. Ensure you protect your workers by setting up trench shields during the job. Some key benefits of an 8″ trench shield include:
- Versatility: You can place the shield in any trench with a wide enough opening. Simply move the 8″ trench shield rental using an excavator.
- Durability: The 8″ trench shield features a double wall to provide more shield durability. A double wall reinforces the shield, ensuring workers inside the trench remain protected while working in deep job sites.
- Safety: Using a trench shield is integral when you have a job involving trenches. Keep all employees laying down pipes and working in the trenches safe with a shield with solid construction.
Rent EquipmentFind Sage Rental Services in TX, OK, and LA
Whenever you need to rent an 8″ steel trench shield, Sage Rental Services has you covered. We have several locations throughout Louisiana, Oklahoma, and Texas to help construction sites get the equipment necessary for completing jobs and keeping workers safe. Our teams are ready to assist you in getting the 8″ steel trench shield rentals you need.
We understand that safety and dependable equipment are crucial to completing jobs. When you come to us, we do everything possible to get you high-quality rentals, and you can expect an exceptional customer experience so you can easily rent equipment.
Contact Sage Rental Services to Get Started
Sage Rental Services is a trusted heavy machinery rental company. We have over 40 years of experience helping companies get the equipment needed to complete jobs and keep workers safe.
Our specialization in selling and renting trench safety equipment helps us be a leader in the industry. We provide equipment for various applications in the construction industry, such as excavation, pipeline work, industrial, and underground utility.
Learn more about our 8″ trench shield rentals when you contact us today. Find a location near you to visit and rent the trench shield best for your job. Our team will help you find the best structure to meet your trenching needs.
